Content : Polybox enclosure, corner elevators (UEL1.04), mounting feet (UMB1.04), cover plugs (UCBP1.04), screws (UBPS1.04).

Ensto Polybox enclosures are rugged industrial polycarbonate enclosures with unique and innovative features, such as, stainless steel padlock latch and a corner elevator mounting system for adjustable hinged front kits and back panels.

Ensto Polybox was built in response to a request from their American market consequently, the product codes have an imperial configuration.

Specifications

• Dimensions: 485 x 430 x 290 mm (18.0 x 16.0 x 10.0 IN)
• Inner Depth:  257.3 mm (10.13 in)
• 4mm wall thickness as standard.
• Hinged metal snap latch

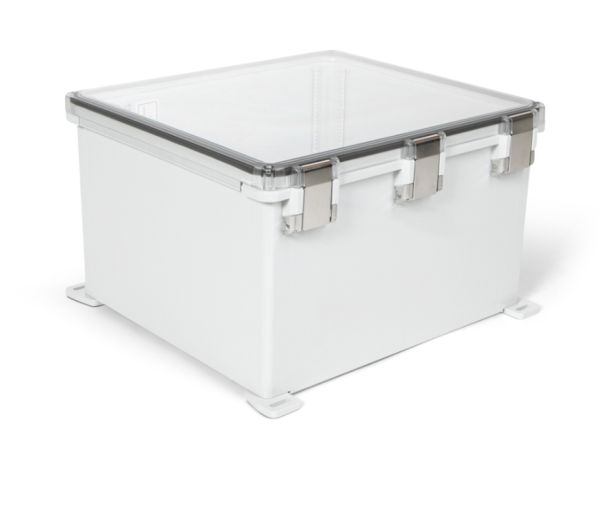

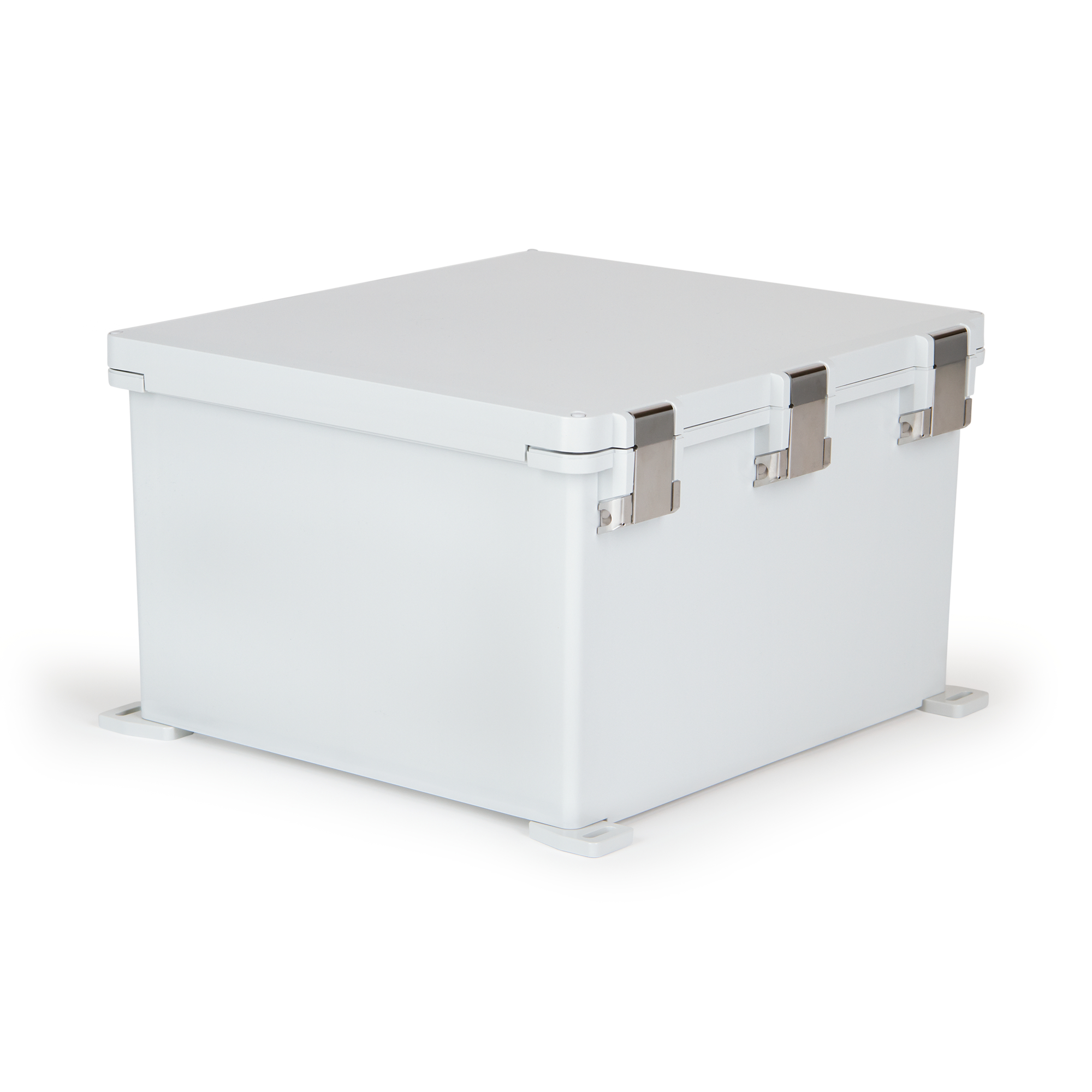

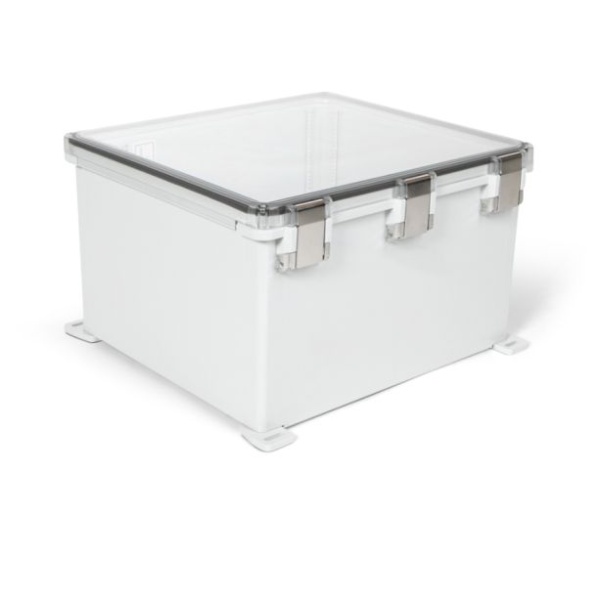

• Code: UPCG181610HML - Grey Lid , UPCT181610HML- Transparent Lid
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True (UHFP1.04)
• IP Rating: IP69
• IK Rating : IK10
• Chemical Resistance: True

Temperatures

• Flammability Rating: UL 746C 5 inch flame test
• Operating Temperature: -40 ... +80 °C
• Short Term Temperature Range: -40 ... +120 °
• Standards Tested To: EN 62208, UL 508A

For stp. dwg. and dxf. files, please click here.
