Content : Polybox enclosure, corner elevators (UEL1.04), mounting feet (UMB1.04), cover plugs (UCBP1.04), screws (UBPS1.04).

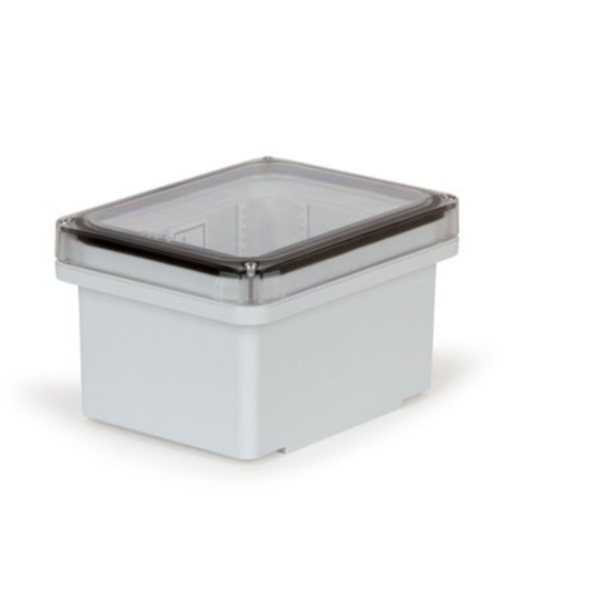

Ensto Polybox enclosures are rugged industrial polycarbonate enclosures with unique and innovative features, such as, stainless steel padlock latch and a corner elevator mounting system for adjustable hinged masking panels and gear trays. The Polybox has 4mm thick walls as standard.

* Ensto Polybox was built in response to a request from their American market consequently, the product codes have an imperial configuration.

Specifications

• Dimensions: 275 x 225 x 180 mm (10.0 x 8.0 x 6.0 in)
• Inner Depth:  155.7 mm (6.13 in)
• 4mm wall thickness as standard.
• Lift-Off 4-Screws
• Code: UPCG100806 - Grey Lid , UPCT100806- Transparent Lid
• Base Materials: Polycarbonate
• Cover Materials: Polycarbonate
• Wall Fastening Possible: True (UHFP1.04)
• IP Rating: IP69
• IK Rating : IK10
• Chemical Resistance: True

Temperatures

• Flammability Rating: UL 746C 5 inch flame test
• Operating Temperature: -40 ... +80 °C
• Short Term Temperature Range: -40 ... +120 °
• Standards Tested To: EN 62208, UL 508A

For stp. dwg. and dxf. files, please click here.

For trade pricing and stock information, please go to the re-seller login.
